FridayAFM - Sugar shell
Héctor here, your AFM expert at Nanosurf calling out for people to share their Friday afternoon experiments. Today I bring you some candy.
Food, and specially sweets have been a recurring theme on fridayAFM. This is because sugar can crystalize forming crystals, and the crystallization conditions, the type of sugar, and the impurities (considering any extra ingredient as impurity), can greatly affect the final product.
For instance, on a previous fridayAFM, we investigated sugar glass which is formed by dissolving the sugar in water and then letting the water dry slowly.
Thanks to the slow formation, the sugar molecules can arrange themselves into a crystal lattice and because the lattice is not parallel to the surface, we get to see the terraces. In other cases were the crystallization is faster, the sugar tends to form small crystals randomly oriented, an example of this is the pearl sugar.
In general, the state diagram for sugar is well understood, and used to create all shorts of foods. However, there is a process that messes up with that diagram. Between fast and slow crystallization there is a process called sugar panning (a.k.a. drageeing), where not only the humidity and temperature change over time, but also a mechanical action is added. Panning is performed inside of a tumbler and can be used to generate beads of specific size or to coat with sugar other elements (e.g. the chocolate nucleus of the M&M candy). The next video shows how panning is used to create silver pearls.
and in the video below, how panning can be used to candy-coat chocolate.
Interestingly, in another fridayAFM we investigated already the M&M candy. We showed that in this case the coating resembles more of gravel than of crystal, with small nanoparticles in it.
To show you how the panning can give rise to very different structures, I bring you today a few other candies that (probably) were produced through panning.

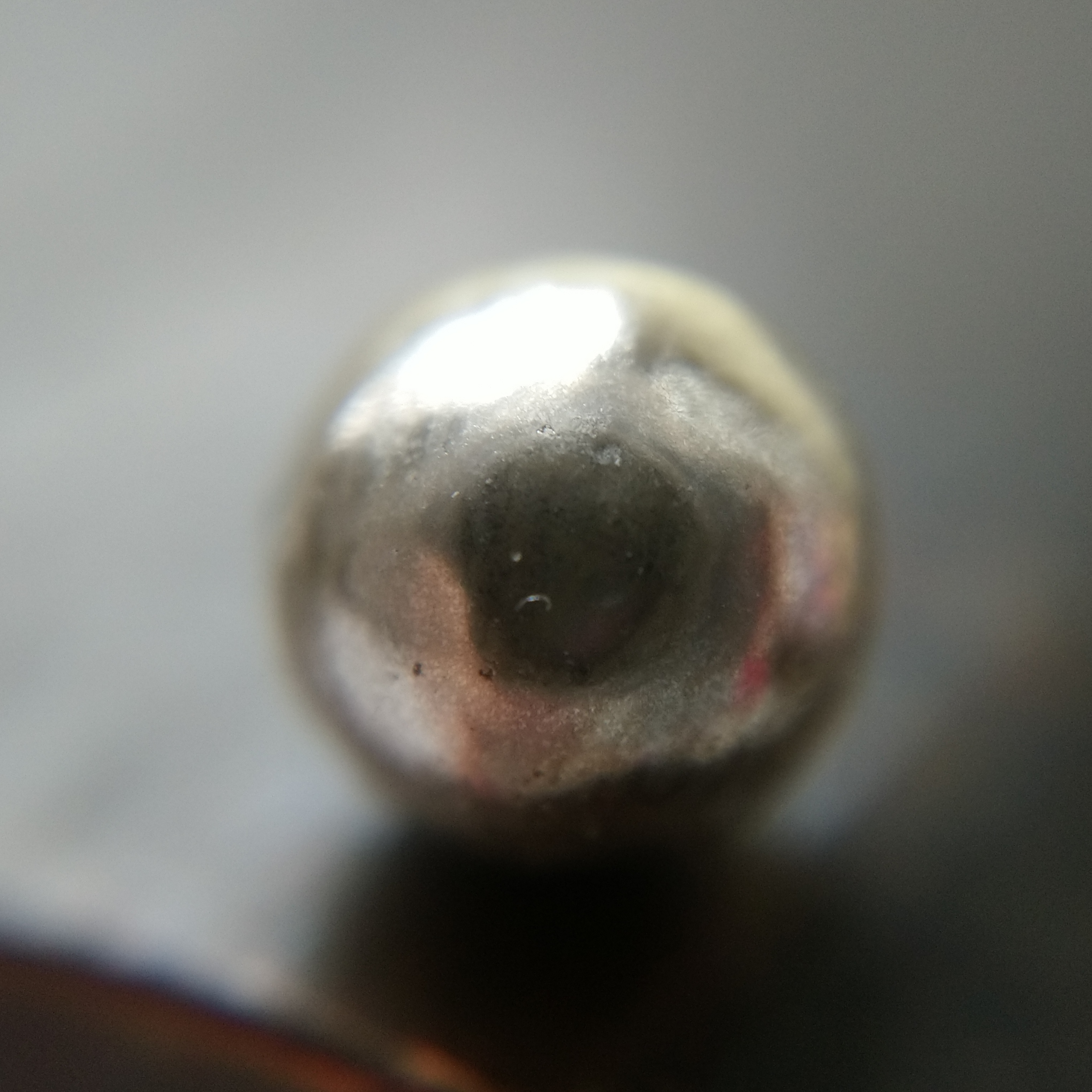

Two of the candies (M&M and Skittles) look very similar, the Pinballs look a little bit more shiny, and the sugar pearls are very reflective. In principle, all these have a sugar coating, and it is likely that all of them were fabricated using the panning technique.
The first one, the sugar pearl shows a surface that has quite a lot of patches quite flat, formed of grains aggregate. It almost looks like the surface was hit many times until the grans compacted onto solid masses. It is likely that these flat surfaces is what it gives this candy its high reflectivity.
The second one shows very little reflection, and this is corroborated by a quite rough surface. Given that the inside material breaks a part quite easily on this one, probable the tumbling process was quite mild, either at low speed or for a short period of time.
The results with the M&M match what we saw in a previous fridayAFM, a quite uniform distribution of spherical grains. Probably the effect of tumbling for a long time.
The last one, the Skittles, resemble quite a lot the M&M, in terms of flatness and homogeneity on the grain size and coverage. Again, probably quite a thorough tumbling.
So... the mechanical stress generates a large variety of finishes (assuming the rest of the process was similar for all the different types of candy), allowing to go from rough surfaces to shiny reflective ones. Which one is more appealing to the eyes and to the tongue? Up to you!
Of course, a more thorough experiment will involve a panning machine and many rounds of fabrication and testing... but until I upgrade my kitchen, this is the best I can offer. I hope you enjoyed what I showed you. Stay in touch, and if you have more info, please share.
